Chain of Responsibility Design Pattern in Java

This article explains Chain of Responsibility design pattern in java with UML class diagram. It then takes an example scenario in java and explains it with class diagram and code.

Introduction: Chain of Responsibility Design Pattern is a behavioral design pattern among the Gang Of Four(GOF)Article on GOF Patterns & their types Design Patterns. Being a behavioral design pattern, the Chain of Responsibility pattern deals with how objects of the designed system interact with each other.

What is Chain of Responsibility Design Pattern
Chain of Responsibility Pattern decouples the handler of a request from its sender by providing multiple potential handlers chained in a sequence. As the request reaches the first handler object, the object checks if it can handle this request. If yes, it handles the request, else it forwards the request to the next handler object in the chain.
Note that this process of handling or forwarding is recursive in nature. The recursive nature of the pattern reflects in its self-referencing design.

When to use Chain of Responsibility Design Pattern

  1. The handler of the request is to be determined dynamically: Which of the multiple handler objects will handle the request is not known in advance. It is determined at runtime.
  2. The handlers can be added dynamically: The potential handlers for the request can be added when the system is running. For example: In a hierarchical setup(like employee hierarchy in an organization) of handlers, the objects representing individual personnel at various levels in the hierarchy may not be available at system design time.

Class Diagram for Chain of Responsibility Design Pattern

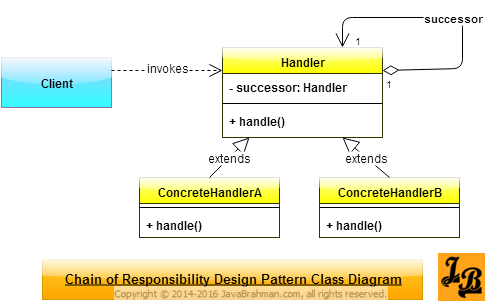

Chain of Responsibility Design Pattern Class Diagram

Explanation of Chain of Responsibility Design Pattern’s Class Diagram

  • Handler is the base class for all handlers. Handler holds a self-referential association with itself to implement the recursive nature of handlers calling next handlers in chain.
  • ConcreteHandler instances extend Handler and implement the actual logic of handling in the handle() method.
  • Client initiates the request which is handled by the ConcreteHandler objects in a sequential chain.

Chain of Responsibility Design Pattern’s Example Implementation in Java-Class Diagram

Chain of Responsibility Design Pattern in Java Class Diagram
Code for the classes shown in Java Example’s Class Diagram
//ComplaintRequest.java
public class ComplaintRequest{
 private int pastComplaintCount;
 private String studentRollNo;
 public ComplaintRequest(int pastComplaintCount, String studentRollNo) {
  super();
  this.pastComplaintCount = pastComplaintCount;
  this.studentRollNo = studentRollNo;
 }
//getter/setter for pastComplaintCount and studentRollNo
}
//Staff.java
public abstract class Staff{
 protected Staff successor=null;
 public Staff(Staff successor) {
  super();
  this.successor= successor;
 }
 public abstract void handleComplaint(ComplaintRequest complaintRequest);
}
//ClassTeacher.java
public class ClassTeacher extends Staff{
 public ClassTeacher(Staff successor) {
  super(successor);
 }
 @Override
 public void handleComplaint(ComplaintRequest complaintRequest) {
  if(complaintRequest.getPastComplaintCount()<=4){
   System.out.println("ClassTeacher handled the complaint for roll no:"+ complaintRequest.getStudentRollNo());
  }else{
   successor.handleComplaint(complaintRequest);
  }
 }
}
//VicePrincipal.java
public class VicePrincipal extends Staff{
 public VicePrincipal(Staff successor) {
  super(successor);
 }
 @Override
 public void handleComplaint(ComplaintRequest complaintRequest) {
  if(complaintRequest.getPastComplaintCount()<=9){
   System.out.println("VicePrincipal handled the complaint for roll no:"+ complaintRequest.getStudentRollNo());
  }else{
   successor.handleComplaint(complaintRequest);
  }
 }
}
//Principal.java
public class Principal extends Staff{
 public Principal(Staff successor) {
  super(successor);
 }
 @Override
 public void handleComplaint(ComplaintRequest complaintRequest) {
  System.out.println("Principal handled the complaint for roll no:"+complaintRequest.getStudentRollNo());
 }
}
//StudentComplaintSystem.java
public class StudentComplaintSystem {
 public static void main(String args[]){
  //hierarchy of staff is created
  ClassTeacher classTeacher=new ClassTeacher(new VicePrincipal(new Principal(null)));
  //3 complaint requests are created and sent to class teacher
  classTeacher.handleComplaint(new ComplaintRequest(3,"A101"));
  classTeacher.handleComplaint(new ComplaintRequest(7,"B202"));
  classTeacher.handleComplaint(new ComplaintRequest(10,"C303"));
 }
}
 OUTPUT on running StudentComplaintSystem.java
ClassTeacher handled the complaint for roll no:A101
VicePrincipal handled the complaint for roll no:B202
Principal handled the complaint for roll no:C303
Explanation of Java Example’s Class Diagram and Code
The Java class diagram above depicts Chain of Responsibility Design pattern implemented for a Student Complaint System. In this complaint system complaint request for students up to 4 past complaints is handled by the class teacher, between 5 to 9 past complaints is handled by the vice principal and more than 9 past complaints is handled by the principal.

Lets quickly go through whats there in Java’s example’s class diagram and corresponding code –

  • ComplaintRequest encapsulates the student complaint raised.
  • Staff is the base abstract class for all handlers in the chain. It holds a reference to itself which is named as successor in terms of next in the chain for handling the request. In this case successor is next Staff object greater in authority. Authority structure is ‘class teacher > vice principal > principal’.
  • All ComplaintRequests are created an given to a ClassTeacher instance for handling. If pastComplaintCount is <=4 then class teacher handles the complaint else it passes the complaint to its successor VicePrincipal’s object.
  • VicePrincipal handles complaints till pastComplaintCount is <=9. Complaints with pastComplaintCount greater than 9 is given to the Principal object to handle.
  • The output is shown for 3 complaint requests raised which are handled by class teacher, vice principal and principal.

Summary
In the above tutorial we understood what is Chain of Responsibility design pattern and the main scenarios in which this pattern is applicable. We then looked at the UML class diagram for Chain of Responsibility Design Pattern & its explanation, a Java Use Case implementing the pattern with its class diagram and code for the classes shown in the class diagram, followed by explanation of both the class diagram & code. This concludes the tutorial on Chain of Responsibility design pattern.
